| 材质 | 轴承钢 |
|---|---|
| 类别 | 单向离合器 |
| 类型 | 单向离合器 |
| 加工定制 | 是 |
| 尺寸 | 280---775 |
| 是否提供加工定制 | 是 |
| 产地 | 常州 |
| 用途 | 逆止 分度 超越 |
| 品牌 | TN |
| 型号 | FXM FXRT FXRV |

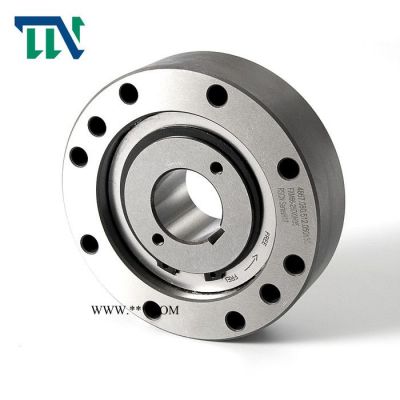

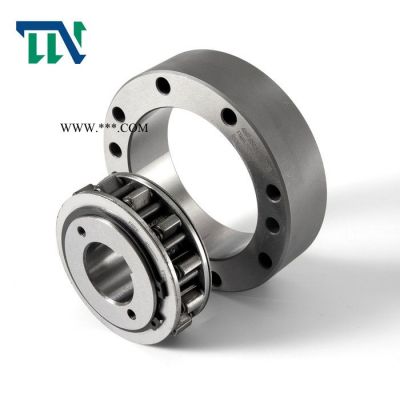

Integrated Freewheels FXM are sprag free -wheels without bearing support and with spraglift-off X.The sprag lift-off X ensures a wear-free freewheeling operation when the inner ring rotates at high speed.The freewheels FXM are used as:1. Backstops2. Overrunning Clutchesfor applications with high speed freewheeling operation and when used as an overrunning clutch with low speed driving operation.Nominal torqueswhich are supported in a cage connected with the inner ring, rotate with the inner ring. The centrifugal force F C that is applied in the center of gravity S of the sprag turns the sprag counterclockwise and rests against the support ring of the cage.
| | d | A | B | D | E | F | G | J | L | P | T | U | V | W | Z** | w | ||||||
| bore |
mm | |||||||||||||||||||||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kg | ||||
| FXM 31 -17 | 20* |
|
|
|
|
| 20* | 17 | 25 | 85 | 41 | 55 | M6 | 31 | 24 | 1,0 | 70 | 15 | 6 | 21 | 6 | 0,8 |
| FXM 38 -17 | 25* |
|
|
|
|
| 25* | 17 | 25 | 90 | 48 | 62 | M6 | 38 | 24 | 1,0 | 75 | 15 | 6 | 21 | 6 | 0,9 |
| FXM 46 -25 | 25 |
|
|
|
|
| 30 | 25 | 35 | 95 | 56 | 70 | M6 | 46 | 35 | 1,0 | 82 | 15 | 6 | 21 | 6 | 1,3 |
| FXM 51 -25 | 25 | 30 | 35 |
|
|
| 36 | 25 | 35 | 105 | 62 | 75 | M6 | 51 | 35 | 1,0 | 90 | 15 | 6 | 21 | 6 | 1,7 |
| FXM 56 -25 | 35 |
|
|
|
|
| 40 | 25 | 35 | 110 | 66 | 80 | M6 | 56 | 35 | 1,0 | 96 | 15 | 6 | 21 | 8 | 1,8 |
| FXM 61 -19 | 30 | 35 | 40 |
|
|
| 45* | 19 | 27 | 120 | 74 | 85 | M8 | 61 | 25 | 1,0 | 105 | 15 | 6 | 21 | 6 | 1,8 |
| FXM 66 -25 | 35 | 40 | 45 |
|
|
| 48* | 25 | 35 | 132 | 82 | 90 | M8 | 66 | 35 | 1,0 | 115 | 15 | 8 | 23 | 8 | 2,8 |
| FXM 76 -25 | 45 | 55 |
|
|
|
| 60* | 25 | 35 | 140 | 92 | 100 | M8 | 76 | 35 | 1,0 | 125 | 15 | 8 | 23 | 8 | 3,1 |
| FXM 86 -25 | 40 | 45 | 50 | 60 | 65 |
| 70* | 25 | 40 | 150 | 102 | 110 | M8 | 86 | 40 | 1,0 | 132 | 15 | 8 | 23 | 8 | 4,2 |
| FXM 101 -25 | 55 | 70 |
|
|
|
| 80* | 25 | 50 | 175 | 117 | 125 | M10 | 101 | 50 | 1,0 | 155 | 20 | 8 | 28 | 8 | 6,9 |
| FXM 85 -40 | 45 | 50 | 60 | 65 |
|
| 65 | 40 | 50 | 175 | 102 | 125 | M10 | 85 | 60 | 1,0 | 155 | 20 | 8 | 28 | 8 | 7,4 |
| FXM 100 -40 | 45 | 50 | 55 | 60 | 70 | 75 | 80* | 40 | 50 | 190 | 130 | 140 | M10 | 100 | 60 | 1,5 | 165 | 25 | 10 | 35 | 12 | 8,8 |
| FXM 120 -50 | 60 | 65 | 70 | 75 | 80 | 95 | 95 | 50 | 60 | 210 | 150 | 160 | M10 | 120 | 70 | 1,5 | 185 | 25 | 10 | 35 | 12 | 12,7 |
| FXM 140 -50 | 65 | 90 | 100 | 110 |
|
| 110 | 50 | 70 | 245 | 170 | 180 | M12 | 140 | 70 | 2,0 | 218 | 25 | 12 | 35 | 12 | 19,8 |
| FXM 170 -63 | 70 | 85 | 90 | 100 | 120 |
| 130 | 63 | 80 | 290 | 200 | 210 | M16 | 170 | 80 | 2,0 | 258 | 28 | 12 | 38 | 12 | 33,0 |
| FXM 200 -63 | 130 |
|
|
|
|
| 155 | 63 | 80 | 310 | 230 | 240 | M16 | 200 | 80 | 2,0 | 278 | 32 | 12 | 42 | 12 | 32,0 |
| FXM 240 - 63 |
|
|
|
|
|
| 185 | 63 | 80 | 400 | 280 | 310 | M20 | 240 | 90 | 2,0 | 360 | 48 | 15 | 60 | 12 | 60,0 |
| FXM 240 - 96 |
|
|
|
|
|
| 185 | 96 | 125 | 420 | 280 | 310 | M24 | 240 | 120 | 2,0 | 370 | 48 | 18 | 60 | 16 | 95,0 |
| FXM 260 - 63 |
|
|
|
|
|
| 205 | 63 | 80 | 430 | 300 | 330 | M20 | 260 | 105 | 2,0 | 380 | 48 | 18 | 60 | 16 | 75,0 |
| FXM 290 - 70 |
|
|
|
|
|
| 230 | 70 | 80 | 460 | 330 | 360 | M20 | 290 | 105 | 2,0 | 410 | 48 | 18 | 60 | 16 | 90,0 |
| FXM 290 - 96 |
|
|
|
|
|
| 230 | 96 | 110 | 460 | 330 | 360 | M20 | 290 | 120 | 2,0 | 410 | 48 | 18 | 60 | 16 | 91,0 |
| FXM 310 - 70 |
|
|
|
|
|
| 240 | 70 | 125 | 497 | 360 | 380 | M20 | 310 | 110 | 3,0 | 450 | 48 | 18 | 60 | 24 | 135,0 |
| FXM 310 - 96 |
|
|
|
|
|
| 240 | 96 | 125 | 497 | 360 | 380 | M20 | 310 | 120 | 3,0 | 450 | 48 | 18 | 60 | 24 | 145,0 |
| FXM 320 - 70 |
|
|
|
|
|
| 250 | 70 | 80 | 490 | 360 | 390 | M24 | 320 | 105 | 3,0 | 440 | 55 | 20 | 68 | 16 | 105,0 |
| FXM 360 - 100 |
|
|
|
|
|
| 280 | 100 | 120 | 540 | 400 | 430 | M24 | 360 | 125 | 3,0 | 500 | 55 | 20 | 68 | 24 | 170,0 |
| FXM 410 - 100 |
|
|
|
|
|
| 320 | 100 | 120 | 630 | 460 | 480 | M24 | 410 | 125 | 3,0 | 560 | 55 | 20 | 68 | 24 | 245,0 |
| FXM 2410 - 100 |
|
|
|
|
|
| 320 | 200 | 220 | 630 | 460 | 480 | M30 | 410 | 220 | 3,0 | 560 | 55 | 20 | 68 | 24 | 440,0 |
