结构类型:半封闭式
类型:活塞式压缩机
起订:1件
供应:1000件
| 结构类型 | 半封闭式 |
|---|---|
| 类型 | 活塞式压缩机 |
| 用途 | 制冷压缩机 |
| 重量 | 1kg |
| 排量类型 | 定排量压缩机 |
| 品牌 | sanyo/三洋 |
| 型号 | C-L105M83 C-L113M91 C-L105MM31 C-LN105M81 C-LN113M |
| 加工定制 | 否 |
| 外形尺寸（长x宽x高） | 0*0*0 |
仿制连杆活塞 厂家直销 不含运费 不含税

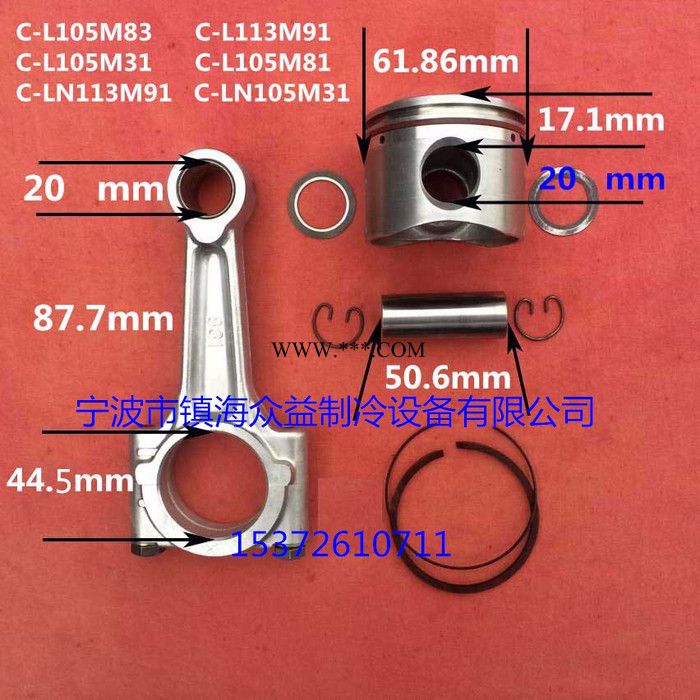

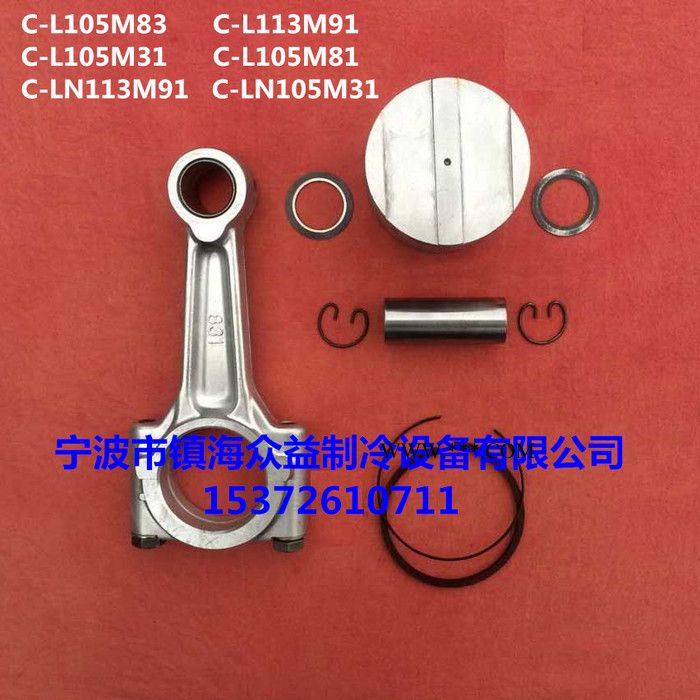

sanyo/三洋 C-L105M83 C-L113M91 C-L105MM31 C-LN105M81 C-LN113M91 C-LN105M31连杆活塞总成
厂家直销 不含运费 不含税 原装进口 质量与外观跟新机相仿

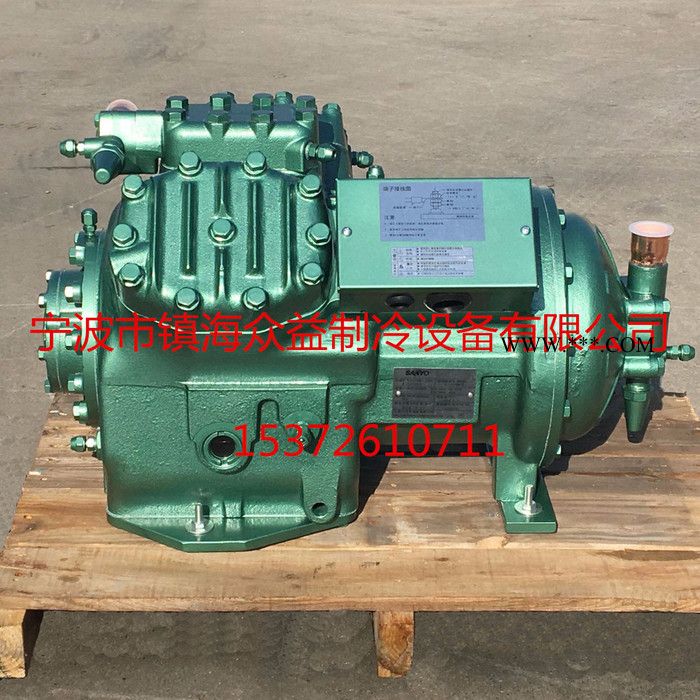

名称：SANYO/三洋
型号：C-L105M83
功率：10.5KW
电源：380V/440V-50HZ/60HZ
气缸直径（mm):62
行程（mm):50
气缸数量：4
排气量：52.55m3/h
底脚安装尺寸：324mm*288mm*226.5mm
外形尺寸（mm):长宽高
吸气管内径（mm)：35
排气管内径（mm）：28
重量（kg):160
油充注量（升）：5.2
制冷剂：R12 R22 R502
| 型号 | C-L15M8H | 22M8F | 28M8G | 37M8L | 45M8D | 55M8E | 75M81 | 90M82 | 105M83 | 150M82 |
| 气缸数 | 2 | 2 | 2 | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| 缸径mm | 40 | 48 | 55 | 55 | 62 | 62 | 62 | 62 | 62 | 62 |
| 行程mm | 29 | 29 | 33 | 44 | 44 | 48.4 | 37.6 | 43.3 | 50 | 70 |
| 排气量m3/h | 6.33 | 9.14 | 13.64 | 18.18 | 23.11 | 25.41 | 39.5 | 45.41 | 52.55 | 73.52 |
| 冷冻能力KW | 2.44 | 3.56 | 5.35 | 7.5 | 10.00 | 10.99 | 15.7 | 17.40 | 20.30 | 30.30 |
| 额定功率KW | 1.2 | 1.75 | 2.52 | 3.4 | 4.65 | 4.94 | 6.8 | 8.3 | 9.7 | 13.8 |
| 电流A | 2.5 | 3.5 | 5.1 | 6.8 | 9.8 | 9.9 | 12.5 | 15.6 | 19.6 | 26.2 |
| 始动电流A | 22 | 27 | 42.5 | 52.5 | 73.5 | 86 | 95 | 99 | 126 | 175 |
| 油注入L | 0.9 | 0.9 | 2.8 | 2.8 | 3.0 | 3.0 | 5.2 | 5.2 | 5.2 | 5.2 |
| 吸接管mm | 12.7 | 15.9 | 19.1 | 22.2 | 28.6 | 28.6 | 28.6 | 28.6 | 34.9 | 41.5 |
| 排接管mm | 12.7 | 15.9 | 15.9 | 15.9 | 19.1 | 19.1 | 22.2 | 22.2 | 22.2 | 28.6 |
| 压缩机 | 项目 | 冷凝温度C | 蒸发温度C | |||||||
| | | -40 | -35 | -30 | -25 | -20 | -15 | -10 | -5 | |
| C-L105M83 80584068 10.5KW 15HP | 制冷量Q KW | 30 | 5.92 | 8.14 | 11.07 | 14.70 | 19.03 | 24.07 | 29.82 | 36.27 |
| 35 | 4.84 | 6.99 | 9.79 | 13.27 | 17.41 | 22.21 | 27.68 | 33.82 | ||
| 40.5 | 3.82 | 5.86 | 8.53 | 11.83 | 15.75 | 20.30 | 25.48 | 31.29 | ||
| 45 | 3.12 | 5.06 | 7.61 | 10.75 | 14.50 | 18.84 | 23.79 | 29.34 | ||
| 50 | 2.47 | 4.29 | 6.69 | 9.67 | 13.21 | 17.34 | 22.03 | 27.31 | ||
| 输入功率P KW | 30 | 4.94 | 5.91 | 6.78 | 7.56 | 8.25 | 8.84 | 9.34 | 9.74 | |
| 35 | 5.02 | 6.02 | 6.95 | 7.79 | 8.55 | 9.24 | 9.84 | 10.37 | ||
| 40.5 | 5.12 | 6.15 | 7.12 | 8.04 | 8.90 | 9.70 | 10.44 | 11.13 | ||
| 45 | 5.20 | 6.25 | 7.27 | 8.25 | 9.19 | 10.10 | 10.97 | 11.81 | ||
| 50 | 5.28 | 6.36 | 7.43 | 8.48 | 9.53 | 10.57 | 11.59 | 12.61 | ||
| 输入电流 A | 30 | 14.08 | 15.10 | 16.04 | 16.91 | 17.70 | 18.42 | 19.06 | 19.63 | |
| 35 | 14.16 | 15.22 | 16.24 | 17.20 | 18.11 | 18.97 | 19.78 | 20.55 | ||
| 40.5 | 14.26 | 15.36 | 16.44 | 17.51 | 18.56 | 19.06 | 20.62 | 21.62 | ||
| 45 | 14.33 | 15.46 | 16.61 | 17.77 | 18.94 | 20.13 | 21.34 | 22.55 | ||
| 50 | 14.41 | 15.57 | 16.79 | 17.06 | 19.38 | 20.75 | 22.17 | 23.64 | ||
| C-L150M8F 80593468 15KW 20HP | 制冷量Q KW | 30 | 8.09 | 13.32 | 18.70 | 24.24 | 29.94 | 35.79 | 41.80 | 47.96 |
| 35 | 7.01 | 11.41 | 19.21 | 21.42 | 27.04 | 33.06 | 39.49 | 46.32 | ||
| 40.5 | 5.96 | 9.51 | 13.72 | 18.59 | 24.11 | 30.30 | 37.14 | 44.65 | ||
| 45 | 5.20 | 8.11 | 11.87 | 16.47 | 21.92 | 28.22 | 35.37 | 43.37 | ||
| 50 | 4.46 | 6.72 | 10.01 | 14.34 | 19.71 | 26.11 | 33.56 | 42.04 | ||
| 输入功率P KW | 30 | 7.19 | 8.31 | 9.40 | 10.45 | 11.47 | 12.46 | 13.41 | 14.33 | |
| 35 | 7.29 | 8.50 | 9.69 | 10.85 | 11.98 | 13.08 | 14.14 | 15.18 | ||
| 40.5 | 7.40 | 8.73 | 10.03 | 11.31 | 12.57 | 13.80 | 15.01 | 16.19 | ||
| 45 | 7.49 | 8.91 | 10.32 | 11.71 | 13.07 | 14.42 | 15.75 | 17.07 | ||
| 50 | 7.59 | 9.12 | 10.65 | 12.16 | 13.66 | 15.15 | 16.63 | 18.10 | ||
| 输入电流 A | 30 | 18.40 | 19.53 | 20.70 | 21.90 | 23.14 | 24.42 | 25.73 | 27.08 | |
| 35 | 18.48 | 19.76 | 21.07 | 22.42 | 23.82 | 25.25 | 26.73 | 28.24 | ||
| 40.5 | 18.58 | 20.01 | 21.49 | 23.01 | 24.58 | 26.20 | 27.87 | 29.58 | ||
| 45 | 18.66 | 20.22 | 21.83 | 23.50 | 23.23 | 27.00 | 28.84 | 30.72 | ||
| 50 | 18.75 | 20.45 | 22.23 | 24.06 | 25.96 | 27.93 | 29.96 | 32.05 | ||
