品牌:津都
产品类型:全新
动力类型:电动
加工精度:精密
起订:5台
供应:500台
发货:2天内
| 产品类型 | 全新 |
|---|---|
| 动力类型 | 电动 |
| 加工精度 | 精密 |
| 控制形式 | 数控 |
| 类型 | 普通车床 |
| 适用范围 | 通用型 |
| 安装形式 | 落地式 |
| 是否库存 | 是 |
| 适用行业 | 机床 |
| 布局形式 | 立式 |
| 品牌 | 津都 |

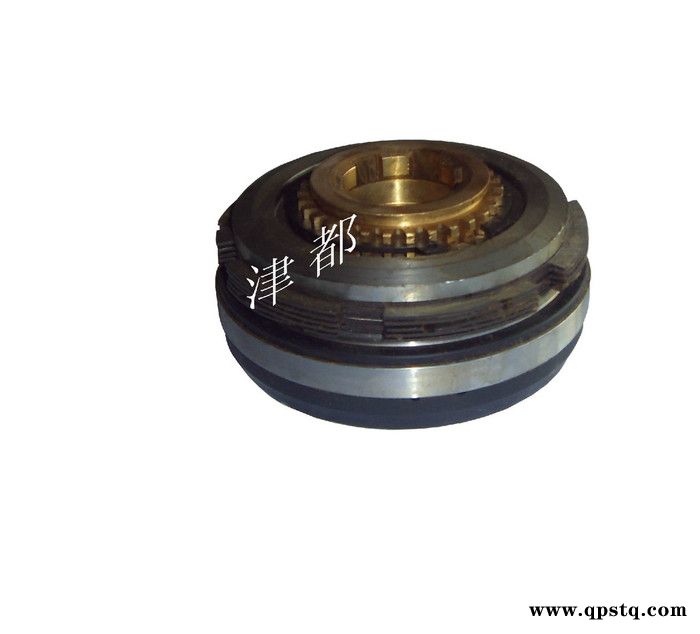

DLM5-10C为湿式多片电磁离合器，铜齿轮套，防轴磁化。整体安装使用方便。外部尺寸：142*64.5 内孔：50-45-6-12
12、DLM5系列湿式多片电磁离合器
外形与安装尺寸
mm
| 规格 | 径向尺寸 | 轴向尺寸 | |||||||||||||
| D1 | D2 | D3 | D | d | b | φ | e | h | h1 | L | L1 | L2 | L3 | L4 | |
| 1.2 | 86
| 50
| 86
| 20+0.023 0 | 17+0.023 0 | 6+0.065 0.025 | 20
| 6
| 22.8+0.1 0 | — | 43.5
| 38
| 5.5
| 5
| 7
|
| 2.5 | 96
| 56
| 96
| 25+0.023 0 | 12+0.14 0 | 5+0.065 0.025 | 25
| 8
| 28.3+0.2 0 | — | 48.5
| 43
| 5.5
| 7
| 7
|
| 5
| 113
| 65
| 113
| 30+0.023 0 | 26+0.14 0 | 6+0.065 0.025 | 30
| 8
| 33.3+0.2 0 | — | 55.5
| 50
| 5.5
| 7
| 8
|
| 10
| 133
| 75
| 133
| 40+0.027 0 | 35+0.17 0 | 10+0.085 0.035 | 40
| 12
| 43.3+0.2 0 | — | 61
| 54.5
| 6,5
| 8
| 10
|
| 16
| 145
| 85
| 145
| 45+0.027 0 | 40+0.17 0 | 12+0.105 0.045 | 45
| 14
| 48.8+0.2 0 | — | 63.5
| 57
| 6,5
| 8
| 10
|
| 25
| 166
| 95
| 166
| 50+0.027 0 | 45+0.17 0 | 12+0.105 0.045 | 50
| 14
| 53.8+0.2 0 | — | 72
| 64.5
| 7.5
| 10
| 10
|
| 40
| 192
| 120
| 192
| 60+0.03 | 54+0.2 0 | 14+0.105 0.045 | 60
| 18
| 64.4+0.2 0 | — | 82.5
| 74.5
| 8
| 10
| 10
|
| 63 | 212 | 125 | 212 | 70+0.03 0 | 62+0.2 0 | 16+0.105 0.045 | 70 | 20 | 74.9+0.2 0 | — | 91.5 | 82 | 9.5 | 12 | 10 |
| 100
| 235
| 150
| 235
| — | — | — | 70
| 20
| 74.9+0.2 0 | — | 105
| 96
| 10
| 15
| 10
|
| 160
| 270
| 180
| 270
| — | — | — | 100
| 28
| 106.4+0.2 0 | — | 118
| 104
| 14
| 15
| 10
|
| 250
| 310
| 220
| 310
| — | — | — | 110
| 28
| 116.4+0.2 0 | 122.8+0.4 0 | 130 | 116
| 14
| 10
| 12
|
| 400
| 415
| 235
| 415
| — | — | — | 120
| 32
| 127.4+0.2 0 | 134.8+0.4 0 | 150 | 132
| 18
| 10
| 12
|
| 1.2C
| 94
| 50
| 86
| 30+0.023 0 | 26+0.14 0 | 8+0.085 +0.035 | — | — | — | — | 56 | 50.5
| 5.5
| 19
| 10
|
| 5C | 116 | 65 | 113 | 40+0.027 0 | 35+0.17 0 | 10+0.085 +0.035 | — | — | — | — | 59.5 | 54 | 5,5 | 19 | 10 |
| 10C
| 142
| 85
| 133
| 50+0.027 0 | 45+0.17 0 | 12+0.105 +0.045 | — | — | — | — | 64.5
| 58
| 6.5
| 19
| 10
|
| 25C
| 176
| 105
| 166
| 65+0.03 0 | 58+0.14 0 | 16+0.105 +0.045 | — | — | — | — | 81
| 73.5
| 7.5
| 21
| 10
|
